JavaScript + Canvas + SM2 + MilkDrop = JuicyDrop More canvas music visualization - now with 100% more Winamp-iness.

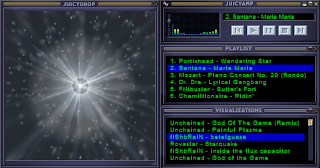

A couple of weeks ago I played around with music visualization using JavaScript/canvas and SoundManager2. Well, I couldn't leave it at that and as I mentioned in the comments, I had an eye on the MilkDrop plugin for Winamp. The result so far is a little Winamp lookalike called JuicyAmp with its own music visualizer JuicyDrop that feeds on Milkdrop preset files.

If you just want to see the pretty colors -> CLICKY. (But please use Chrome or Firefox 3+)

MilkDrop is nice because, although there's a built-in editor in the plugin, the presets are in plain text. They are basically just lists of variables and equations that, with a bit of mangling, can be evaluated as JavaScript. There are also extensive guides that explain how to author presets and how variables are passed around between the different equations. And, even better, the source code for the plugin was released a couple of years ago.

MilkDrop presets consist of a number of different elements (waveforms, shapes, per-pixel effects, etc). Some of them I haven't touched at all, but JuicyDrop supports enough at the moment that a good handful of presets run just fine. That said, there are a whole bunch of problems to work out and the presets included were selected because they looked alright and didn't make it blow up.

I strongly recommend using Chrome for this. Firefox 3 can play too but is probably somewhat slower. There's something screwy going on with Safari, it's like it's refusing to update the display (try holding down a key on your keyboard) (Edit: at least a few people have reported that Safari is working fine for them, YMMV), I'm not sure what exactly is causing it. Opera is a mixed experience for me and it seems to have a problem with playing the music that I haven't found the reason for yet.

The issue with open Flash/sound-using tabs, etc. is of course still here as well (read the comments here for more).

A couple of keyboard controls:
  • Z : switch to smaller (128x128) visualization view (in case of low framerate)
  • X : switch back to normal (256x256) view
  • D : Toggle rendering of deformation mesh points
  • 1 : Toggle basic waveform
  • 2 : Toggle custom waves
  • 3 : Toggle custom shapes
  • 4 : Toggle borders
  • 5 : Toggle per-pixel effects
  • 6 : Toggle video echo
Note that not all presets use all of the features that you can toggle with the keys 1-6.

So without further ado, go have yourself a canvas trip.

I'm not sure where to go from here (besides a lot of optimizing). I'm not done with this, but I'm not sure I want to try to get full MilkDrop support. I believe the presets of today use a lot of pixel shaders anyway, which obviously is no good here. What I might do, though, is add another preset format (probably JSON?) that's a bit easier to work with and then shape that into something more suited for canvas and JavaScript. But for now I have a date with Pixastic..
